| Tên thương hiệu: | EMT |
| MOQ: | Có thể thương lượng |
| giá bán: | negotiable |
| Điều khoản thanh toán: | T / T, Western Union |
| Khả năng cung cấp: | 50000PCS / tháng |

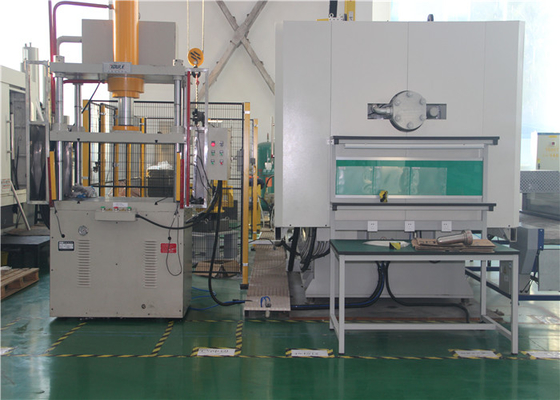

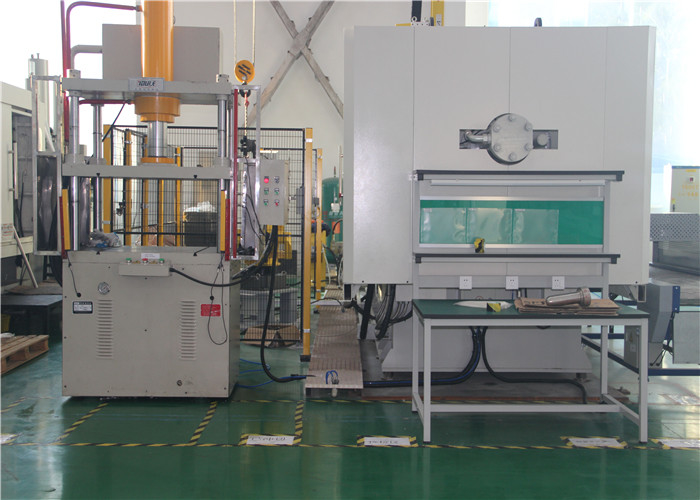

Mg-1500 magnesium alloy semi-solid injection molding machine
Technical parameters
| No. | Description | Unit | MG-1500 |
| I. Mold locking | |||
| 1 | Mold locking force | kN | 15000 |
| 2 | Mold lock stroke | mm | 1200 |
| 3 | Mold thickness (minimum to maximum) | mm | 500-1400 |
| 4 | Clamping plate dimension (horizontal × vertical) | mm | 2010x1960 |
| 5 | Column spacing (horizontal × vertical) | mm | 1180×1180 |
| 6 | Way of mold installation | T-groove way | |
| II. Injection | |||
| 1 | Screw diameter | mm | 130 |
| 2 | Injection pressure | MPa | 100 |
| 3 | Theoretical injection volume | cm³ | 4635 |
| 4 | Theoretical injection mass | g | 6675 |
| 5 | Theoretical injection rate | cm³∕s | 61055 |
| 6 | Screw’s maximum injection speed | m∕s | 5 |
| 7 | Screw’s rotation speed | r∕min | 10-285 |
| 8 | Injection stroke | mm | 350 |
| 9 | Injection nozzle dimension | mm | φ25×R45 |
| 10 | Injection nozzle inlet | mm | 75 |
| 11 | Injection nozzle contact force | kN | 800 |
| 12 | Injection device position | mm | 0,-350 |
| I. Others | |||
| 1 | Systematic operating pressure | MPa | 16 |
| 2 | Ejection force | kN | 570 |
| 3 | Ejection stroke | mm | 250 |
| 4 | Electric motor power | kW | 45×2 |
| 5 | Heater’s output power | kW | 120 |
| 6 | Melting servo motor power | kW | 80 |
| 7 | Total electric capacity | kW | 260 |
| 8 | Oil tank capacity | L | 1500 |
| 9 | Machine weight | kg | 110000 |
| 10 | Machine’s overall dimension (L×W×H) | m | 14x6.4x4.5 |
Product Description:
Semi - solid forming technology of magnesium alloy is a new method which combines semi - solid forming with plastic injection molding. The process is that the raw material of magnesium alloy particles enters the feed tube through the hopper, and the temperature gradually rises to above the temperature of the solid phase line through the screw rotational friction shearing and the external heater of the feed tube to prepare the semi-solid slurry. At the same time, under the push of the screw, the injection enters the mold cavity for forming.
Advantage:
FAQ:
1. Q:Are you a factory or a trading company?
A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.
2. Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control.
3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?
A: Yes, with written standard procedures.
4. Q: Is there a procedure to conduct random product inspections after final packaging?
A: Yes, with clear standard and written inspection records.
5. Q: How can I get a quotation?
A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)
6. Q: What is your payment terms?
A: T/T, Western Union, etc.
